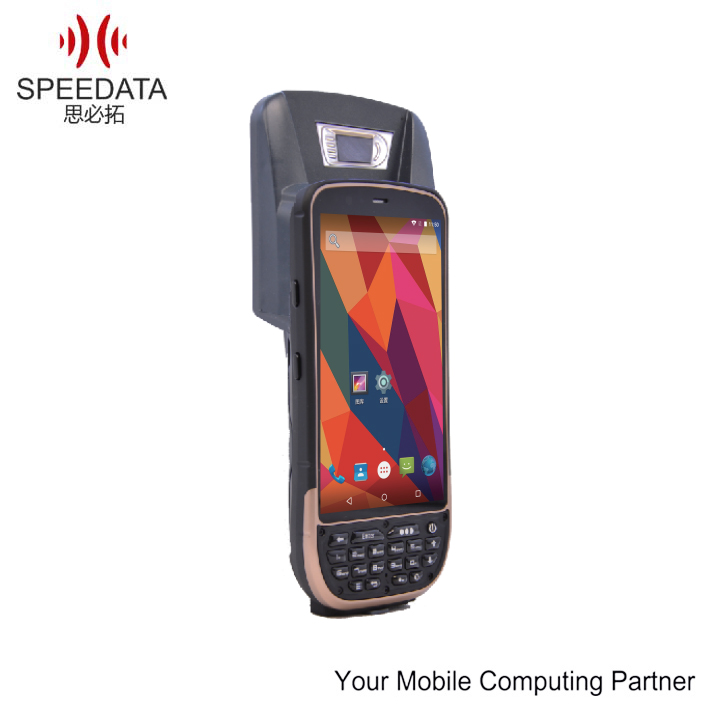

4G LTE 3G 2G Biometric Fingerprint Scanner With Capacitive Fingerprint
Barcode Reading with Capacitive Fingerprint Reader : Crossmatch TCS1 (meet the FBI’s FIPS-201)
Paraments of Barcode Reading with Capacitive Fingerprint Reader
| Core | CPU | Octa-core 1.3GHz
ARM® Cortex-A53 |
| WWLAN | FDD B1B3B7
TDD B38B39B40
WCDMA B1B2B5B8
EVDO BC0
GSM B2B3B5B8 |
| Flash ROM | 16GB |
| RAM | 2GB DDR3 |
General Configuration of Barcode Reading with Capacitive Fingerprint Reader
| Display | Main Screen | 5.5 inch OLED 1920*1080 FHD |
| Sub-screen | 0.91 OLED |
| Touch screen | Multi-point touch capacitive screen |
| Fingerprint | YES |
| GPS | Support GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS |
| Bluetooth | v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE) |
| WiFi | 802.11 a/b/g/n |
| Protection class | IP65 |
| Drop resistance level | 1.5m |
| Camera | Rear camera | 13MP Camera |
| Front camera | 5MP Camera |
| Keypad | Front /Side | 5 side buttons |
| Interface | Micro-USB connector | USB2.0 OTG |
| SIM card slot | 1 standard SIM slot |
| 1 Micro SIM slot |
| TF card slot | Yes |
| power jack | Micro-USB |
| Audio Jack | Yes |
| Battery | Type | rechargeable Li-ion battery 6000mAh |
| Standby Time | 600hours |
| Calls Time | Up to 6hours |
| Charging Time | 5 hours (USB charging) |
| Physical Characteristics | Dimension | 170*79*13mm |
| Weight | >250g with battery (according config) |
| External Interface | OPTION | USB, RS232, SPI, GPIO |
Barcode Reading with Capacitive Fingerprint Reader:
Barcode Reading with Capacitive Fingerprint Reader:
Beijing Speedata Technology Co., Ltd (Stock Code:832442)
Speedatagroup is an OEM/ODM manufacturer of IoT (Internet of Things) Devices and a Provider of Handheld PDA terminal in hardware and software solution, focusing PDA on 1D/2D Barcode scanner, Fingerprint reader, Portable Printer, UHF RFID reader, 433M, MSR, ZigBee, PSAM, and IC card reader, MRZ, IRIS Scanner...
For the past years, Speedata has been rapidly growing as a high-tech enterprise of R&D, production and sales, and furthermore, having extensive application experiences in the IOT field. The head office is located in Beijing, with branch offices in Shanghai, Shenzhen and Dalian, as well as India.
we have a factory both in Beijing and Tianjing.
We have over 30 professional Senior engineers in R&D department.
We successfully cooperate with Foxconn in Shenzhen
