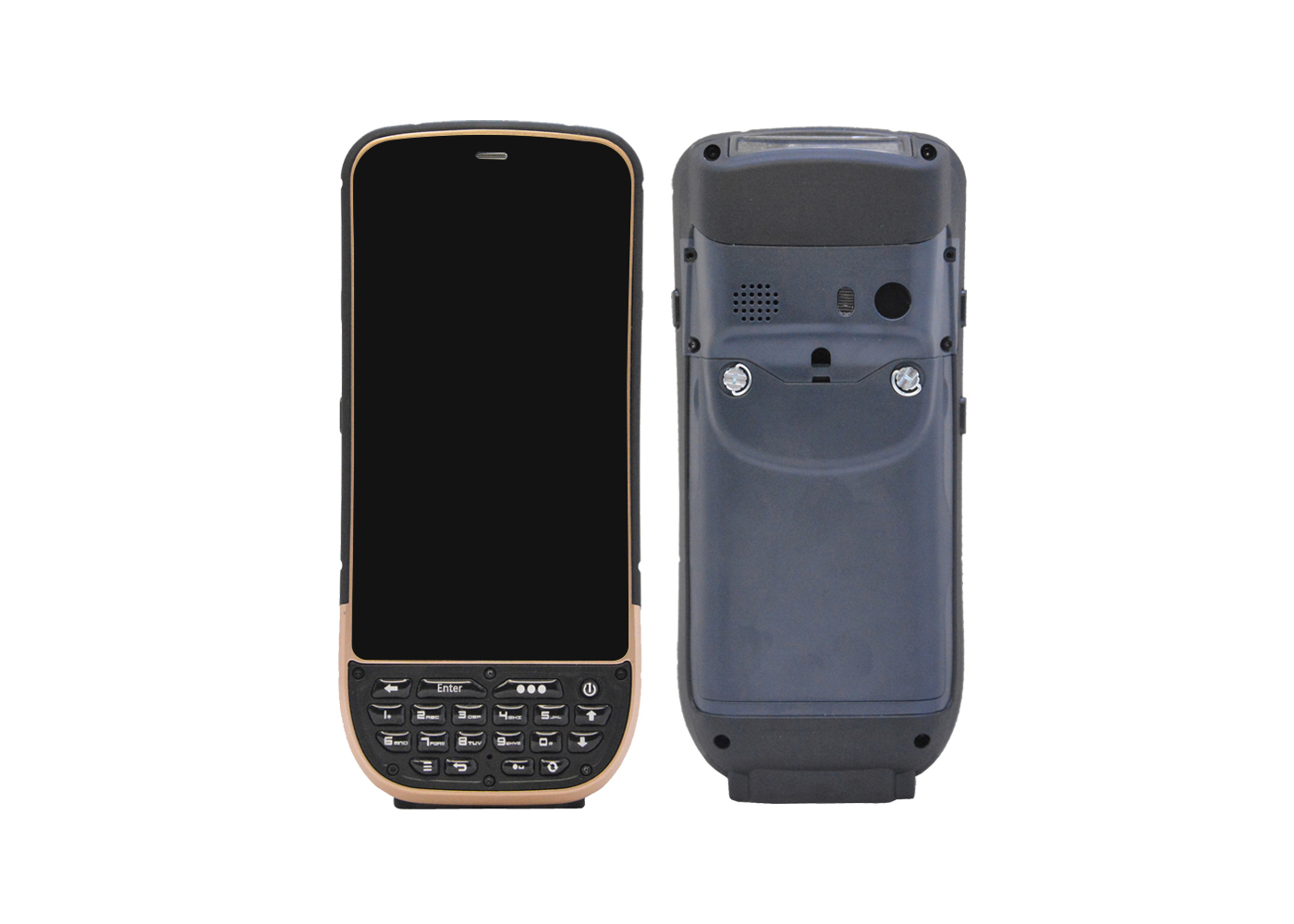

| KT50 HF RFID Reader |
| OS | Android 5.1 |
| Hardware |
| Core board | CPU | Quad-core 1.3Ghz
ARM® Cortex-A53 (LPDDR2 and LPDDR3) |
| WWLAN | FDD B1B3B7
TDD B38B39B40
WCDMA B1B2B5B8
EVDO BC0
GSM B2B3B5B8 |
| Flash ROM | 16GB |
| RAM | 2GB DDR3 |
| | Extensive Memory Slot | 128 GB |
| Motherboard |
| Display @ | 5.0inch IPS 1280*720 |
| touch screen | Multi-point touch capacitive screen |
| Form Factor | Bar type classical PDA,Industrial appearance |
| GPS | Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS |
| DGPS (please check options) |
| Bluetooth | v2.1+EDR / 3.0+HS / v4.0 Low Energy (LE) |
| dual-band WiFi | 2.4 and 5Ghz 802.11 a/b/g/n |
| External Interface | USB HOST/RS232(Customized) |
| Protection class | IP65 |
| Drop resistance level | 1.5m |
| Camera Function (Option) | Camera | 8MP Camera |
| Video | Support still image and video capture |
| Sensor | G-sensor | YES |
| Keypad | Front | 4 |
| Side | 4 |
| Interface | Mini-USB connector | USB2.0 connection |
| SIM card slot | *2 |
| TF card slot | Yes |
| power jack | Yes |
| Audio Jack | Yes |
| Battery | Type | rechargeable Li-ion battery 2600mAh, 7.4V , Capacity19.24Wh, equal to 3.7V *5200mAh |
| Standby Time | 500hours |
| Calls Time | Up to 6hours |
| Charging Time | 4 hours |
| Physical Characteristics | Dimension | 175*76*27mm |
| Weight | >400g with battery (according config) |
| |
| OPTIONS |
| DGPS | ublox LEA-6T (with RTK) |
| MSR(Optional) | Compatible with one, two, three track. (without PCI, EMV security certification.) |
| PSAM(Optional) | ISO7816 (SIM card interfance) |
| IC card reader(Option) | ISO7816 ID-1 |
| Fingerprint reader | Optional | UPEK TCS1G (meet the FBI’s FIPS-201) |
| Printer (Optional) | 2 inch Direct thermal line printing |
| Far Infrared Meter Reading (Optional) | IEC62056-21(IEC1107) communication protocol |
| 433Mhz module | Require customers to provide 433Mhz wireless modules or specifications. |
| | Require customers to provide 433Mhz wireless modules or specifications. |
| RFID Reader | option1 | LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX) |
| option 2 | LF RFID(125KHz) |
| Yes | HF RFID(13.56MHz ISO 1443A/B ISO 15693) |
| option 4 | NFC(include 13.56MHz ISO 1443A/B ) |
| none | UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset |
| option 5 | UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with R2000 shipset, Long distance reader. |
| Barcode Scanner | option 1 | NEWLAND:EM1300(1D barcode reader) |
| option 2 | NEWLAND:EM3095(1D/2D barcode reader) |
| option 3 | Symbol:SE955(1D laser barcode reader) |
| option 4 | HoneyWell:N4313 (1D laser barcode reader) |
| option 5 | Symbol: SE4500(1D&2D barcode reader |
