4.5 Inch IPS LCD Biometric Fingerprint Scanner 8GB ROM A7 1.3GHz

Product Categories

Beijing Speedata Technology Co., Ltd

Contact Now

4.5 Inch IPS LCD Biometric Fingerprint Scanner 8GB ROM A7 1.3GHz

Name: 45 Inch IPS LCD Biometric Fingerprint Scanner 8GB ROM A7 13GHz
Brand: SPEEDATA
Price: 1 USD

China 4.5 Inch IPS LCD Biometric Fingerprint Scanner 8GB ROM A7 1.3GHz wholesale

Brand Name : SPEEDATA

Model Number : KT45

Certification : IP65 CE ROHS

Place of Origin : China Mainland

MOQ : 1 lot

Payment Terms : Western Union

Supply Ability : 10000per week of portable fingerprint scanner

Packaging Details : Portable Fingerprint Scanner printer packing: 1pcs ,usb data cable:1pcs ,charger:1pcs,protection cover:1pcs,hand strap:1pcs

Item Name : Portable Fingerprint Scanner

OS : Android 4.4.2

CPU : A7 1.3GHz

Memory : 8GB ROM

DISPLAY : 4.5INCH IPS LCD

STORAGE : 32GB

CAMERA : 8MP

BATTERY : 4500mAh 3.7V or 2250mAh 7.4V

CERTIFICATE : 3C FCC ROHS IP65 1.5M DROP

PRICE : Cheap Price From Factory Direct

Wireless Communication : Bluetooth WIFI GPRS GPS

Brand : Speedata

Contact Now

4.5 Inch IPS LCD Biometric Fingerprint Scanner 8GB ROM A7 1.3GHz

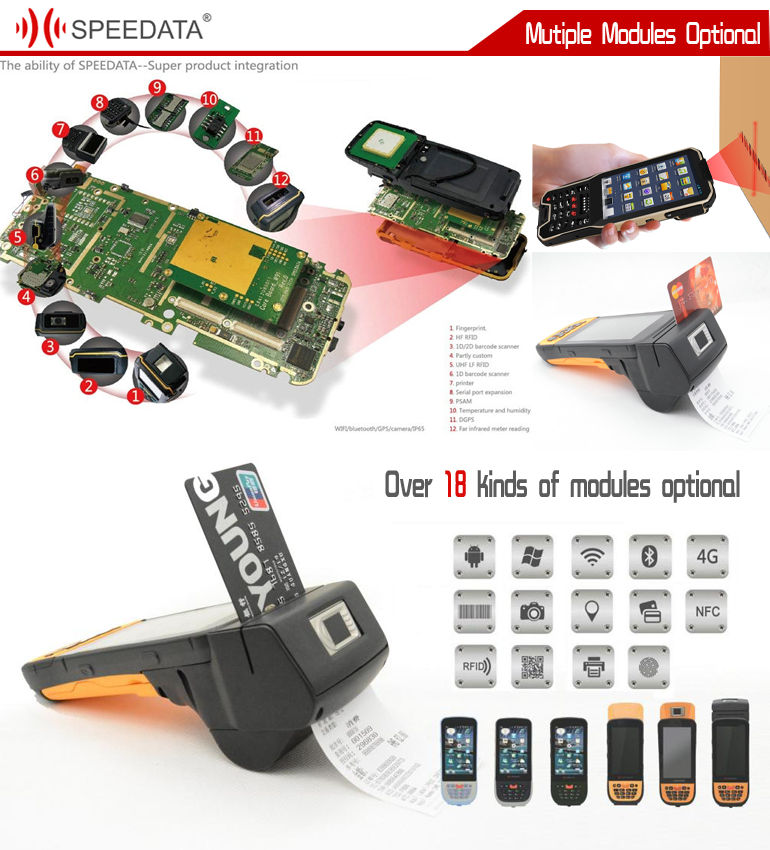

Multiple modulars of KT45 Portable Fingerprint Scanner printer

MSR(Optional)	Compatible with one, two, three track. (without PCI, EMV security certification.)
PSAM(Optional)	ISO7816 (SIM card interfance)
IC card reader (Optional)	ISO7816 ID-1
Fingerprint reader	option 1 UPEK TCS1 (meet the FBI’s FIPS-201)
Fingerprint reader	option 2 UPEK TCS2SS
printer (YES )	2 inch Direct thermal line printing
Far Infrared Meter Reading (Optional)	IEC62056-21(IEC1107) communication protocol
433Mhz module (Optional)	Require customers to provide 433Mhz wireless modules or specifications.
zigbee (Optional)	Require customers to provide 433Mhz wireless modules or specifications.
RFID Reader	option 1 LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX) -- reading distance 10cm
	option 2 LF RFID(125KHz) -- reading distance 10cm
	option 3 HF RFID(13.56MHz ISO 14443A/B ISO 15693) -- reading distance 5cm
	option 4 NFC(include 13.56MHz ISO 14443A/B )
	option 5 UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode----with AS3992 shipset -- reading distance up to 3m
barcode scanner	option 1 NEWLAND:EM1300(1D barcode reader-- Most cheapest )
	option 2 NEWLAND:EM3095(1D/2D barcode reader-- hardware decoding)
	YES symbol:SE955(1D laser barcode reader)
	option 4 Symbol: se4500(1D&2D barcode reader-- software decoding)

More details of KT45 Portable Fingerprint Scanner printer

Development Environment
Operating System	Android 4.4.2
SDK	Software Development Kit
Language	Java

Fundamental Characteristics
CPU	ARM® Cortex-A7 MPCoreTM (LPDDR2 and LPDDR3) Quad-core 1.3Ghz
Memory	1GB DDR3 RAM + 8GB Frash ROM
Storage	Micro SD/TF card max.32GB expansion
Display	4.5-inch IPS 480 * 854 Multi-point touch capacitive screen

Communications
WWLAN	GSM band 850/900/1800/1900MHz,
	Class 12 GPRS,
	EDGE UMTS 850/900/1900/2100MHz HSPA
WiFi	2.4Ghz 802.11 b/g/n
Bluetooth	V2.1+EDR / 3.0+HS / V4.0 Low Energy(LE)
GPS	Supports GPS/QZSS/SBAS (WAAS/MSAS/EGNOS/GAGAN). Support Full AGPS
GPS	DGPS (please check options)

Physical Characteristics
Dimensions	175 * 76 * 28mm
Weight	400g (includes main battery)
Expansion Slots	1PSAM, 2SIM
Battery	rechargeable li-ion battery 4500mAh 3.7V
	Or rechargeable li-ion battery 2250mAh 7.4V (if with printer)
	500hours standby time, Up to 6hours calling time, 4hours charging time
Camera	8MP Camera
Video	Support still image and video capture
Audio	3.5mm 4way plug
Keypad	Front 17keys, Side 4keys
Interfaces	1MicroSD/TF, 1Audio Jack, 1Micro USB, 1Power Jack
Interfaces	USB Host (Optional), RS-232 interface (Optional)

User Environment
Operating Temp.	-10 to 50℃
Humidity	10%RH - 90%RH (Non-condensing)
Protection class	IP65
Drop resistance level	1.5M

Specifications of KT45 Portable Fingerprint Scanner printer

1.4.5inch high-definition IPS LCD capacitive touch screen to meet your visual enjoyment

2.800MP camera with high definition ,it's easy to collect all kinds of image information

3.Support 1D/2D barcode scanning,LF/HF/UHF RFID/fingerprint reading, terminal printer, MSR, PSAM function etc.

4.Android 4.4 Operation System, More Stable and Reliable,provide complete SDK and technical support to make further app development easily

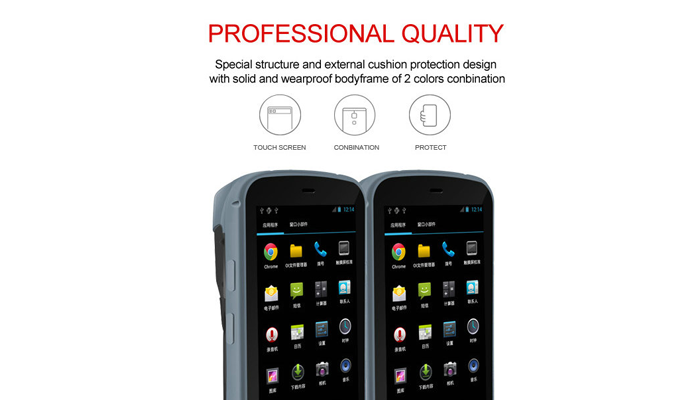

5.Special structure and external cushion protection design, solid and wearproof body shape

6.Matched with the machine seat charger, to ensure the charging interface durable,it's more quicker and easier

7.IP65 Industrial Class, 1.8M drop protection

8.Multiple Functions optional: card reader, printer, fingerprint, infrared reader, temperature, etc

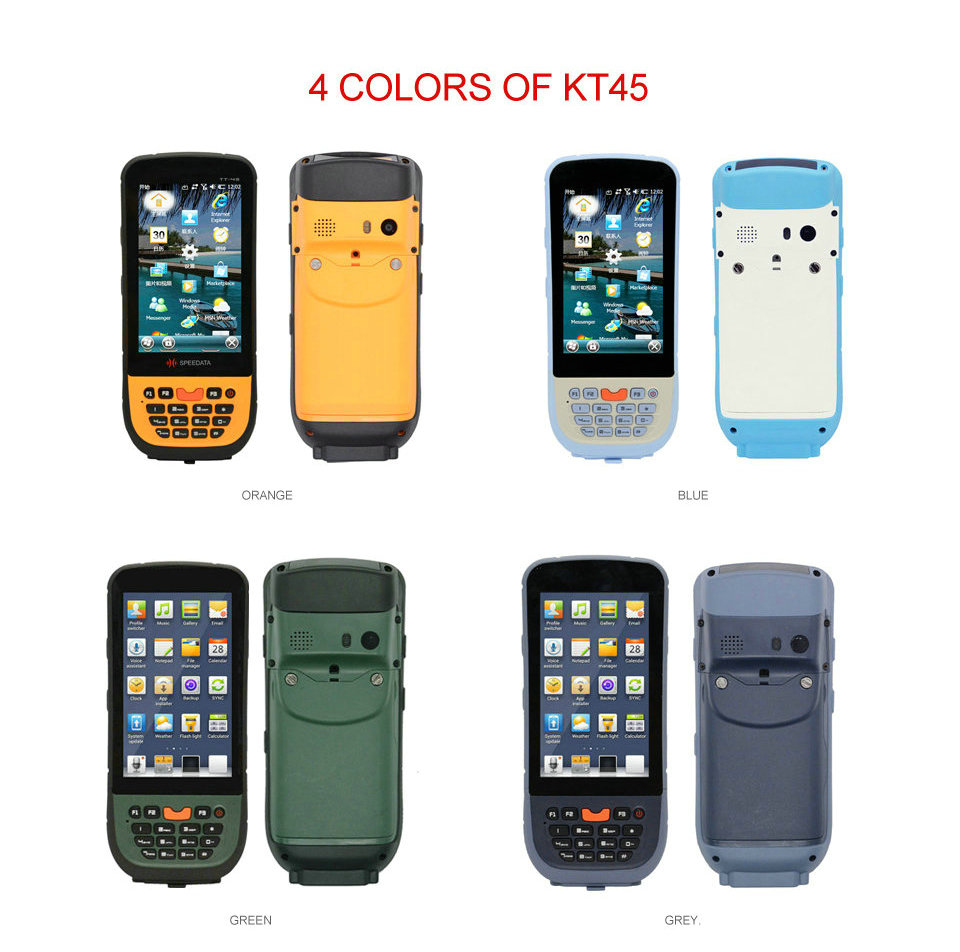

More pictures of KT45 Portable Fingerprint Scanner printer

4.5 Inch IPS LCD Biometric Fingerprint Scanner 8GB ROM A7 1.3GHz

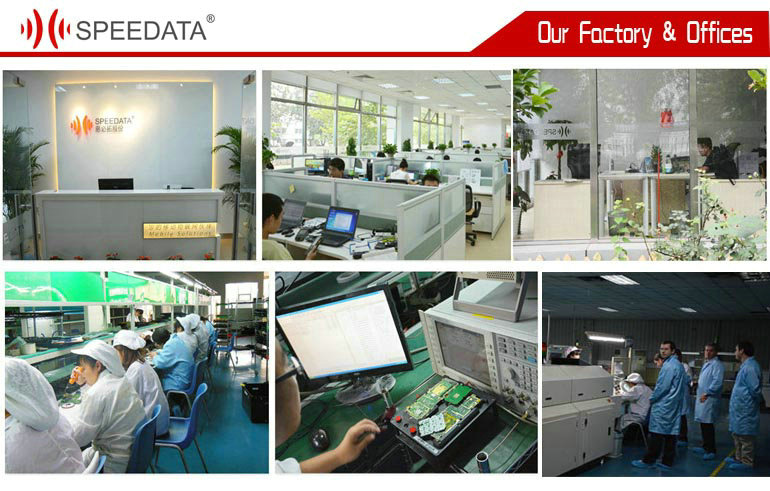

Factory of SPEEDATA of KT45 Portable Fingerprint Scanner printer

4.5 Inch IPS LCD Biometric Fingerprint Scanner 8GB ROM A7 1.3GHz

Industrial application Solutions of SPEEDATA Biometric Portable Fingerprint Scanner

4.5 Inch IPS LCD Biometric Fingerprint Scanner 8GB ROM A7 1.3GHz

Best portable fingerprint scanner with cost-effective price OEM/ODM from china factory direct
