IP65 Bluetooth Portable UHF RFID Reader With 2.5m Reading Distance
TT35 handheld terminal has 3 compatible operating systems , not only to support the market's most fiery Android system, but also to meet with the Windows CE/Mobile systems, as well as secondary development, it breaks the boundaries of traditional fields.the three top operating systems not only can be selected out of user requirements and be updated in the same device for any change, but also support compatibility function.
Futures of TT35 UHF RFID reader

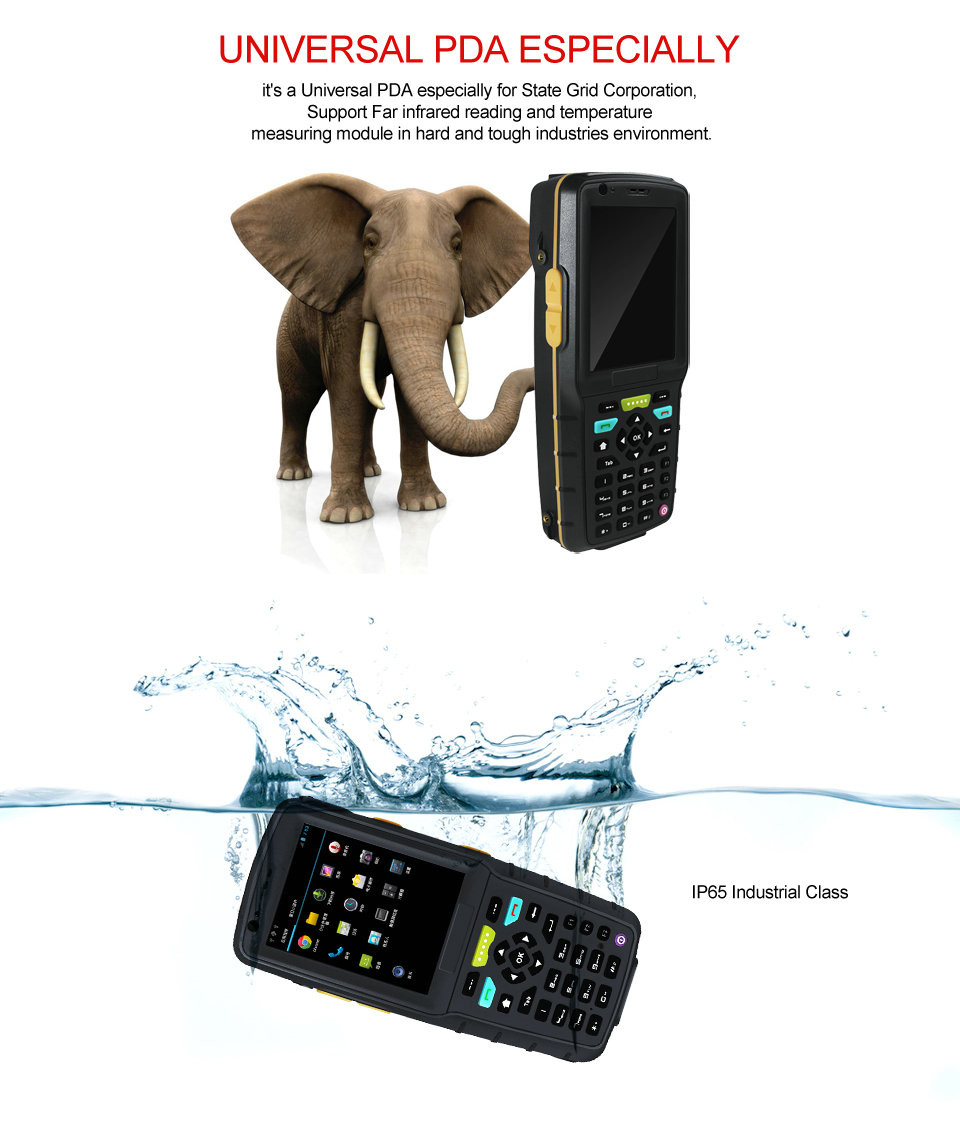

1.it's a Universal PDA especially for State Grid Corporation, Support Far infrared reading and temperature measuring module especially in hard and tough industries environment.
2. 3.5inch high-definition IPS LCD capacitive touch screen with sunlight visible for cost-effective and high performance

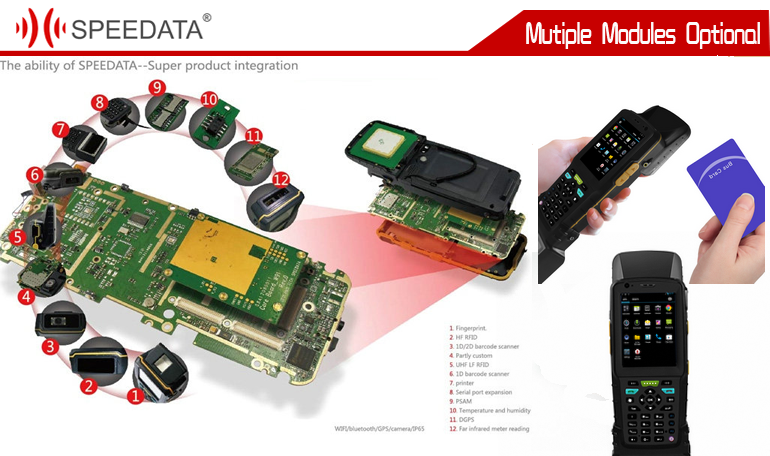

3.Mutiple modules optional for your customization, Support 1D/2D barcode scanning,LF/HF/UHF RFID/fingerprint reading, terminal printer, MSR, PSAM function, Reserved identity recognition, fingerprint identification, infrared measuring temperature, etc. strong and wide extensibility
4.Built-in Ublox/beidou double GPS modules, more accurate positioning

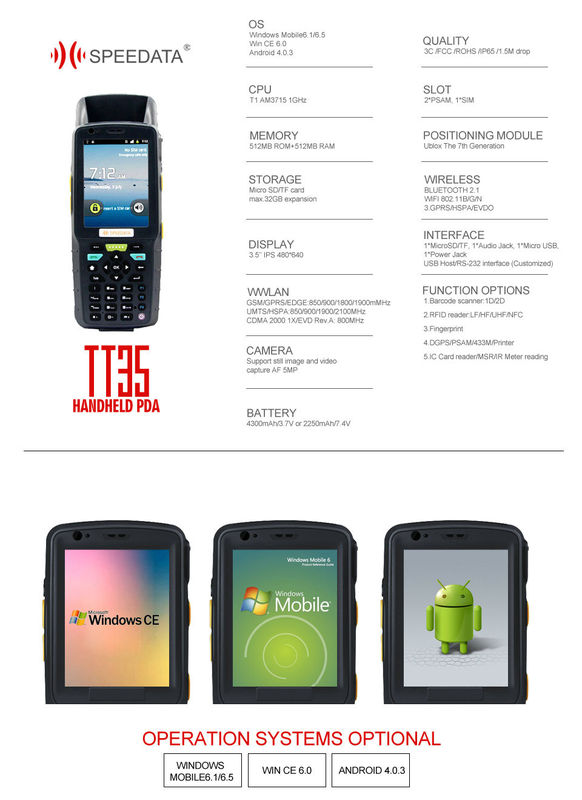

Quick details of TT35 UHF RFID reader
OS Windows Mobile6.1/6.5 or CE 6.0
CPU T1 AM3715 1GHz
Wireless
1.Bluetooth 2.1
2.Wifi 802.11b/g/n
3.GPRS/HSPA/EVDO
WWLAN
GSM/GPRS/EDGE:850/900/1800/1900mMHz
UMTS/HSPA:850/900/1900/2100MHz
CDMA 2000 1X/EVD Rev.A: 800MHz
Memory 512MB ROM+512MB RAM
Interface 1*MicroSD/TF, 1*Audio Jack, 1*Micro USB, 1*Power Jack
USB Host/RS-232 interface (Customized)
Display 3.5inch IPS 480*640
Camera Support still image and video capture AF 5MP
Positioning module Ublox The 7th Generation
Battery 4500mAh/3.7V or 2250mAh/7.4V
Storage Micro SD/TF card max.32GB expansion
Quality 3C /FCC /ROHS /IP65 /1.5M drop
Slot 2*PSAM, 1*SIM
Function Options
1.Barcode scanner:1D/2D
2.RFID reader:LF/HF/UHF/NFC
3.Fingerprint
4.DGPS/PSAM/433M/Printer
5.IC Card reader/MSR/IR Meter reading
Specifications details of TT35 UHF RFID reader
| Hardware |
| Core board |
| WM6.1/6.5 OS | option 1 | Marvell PXA310(806MHz)+qualcomm (GSM band 900/1800/1900MHz, GPRS, EDGE WCDMA 3G 2100MHz HSDPA 3.6Mbps) |
| Android 2.3 OS | option 2 | Marvell PXA910(806MHz)+qualcomm (GSM Quad-band 850 /900 /1800 /1900 MHz, GPRS, EDGE WCDMA 3G 900/1710/2100MHz HSDPA 3.6Mbps |
| Memory | Flash ROM | 512MB |
| RAM | 512MB DDR(WM is 256MB) |
| Extend Slot | Micro SD 32G (SDHC) |
| Motherboard |
| Display | 3.5inch TFT LCD (Transflective screen VGA ) |
| touch screen | 4-wire resistive |
| Form Factor | Bar type classical Pocket PC,Industrial appearance |
| GPS | Qualcomm chipset (WM OS) |
| UBLOX module (Android OS ) |
| Bluetooth | Bluetooth SIG version 2.0 compliant; Supported profiles: headset, hands-free, object push, serial port, dial-up network |
| WiFi | WiFi (802.11 b/g) |
| Fingerprint reader | Optional | SM 621 |
| Thermal Printer | Optional | Direct thermal line printing(paper suplied: 57mm wide 30mm Φ) |
| Far Infrared Meter Reading | Optional | IEC62056-21(IEC1107) communication protocol |
| RFID Reader | option 1 | LF RFID(134.2khz, ISO11784/11785, FDX-B/HDX) |
| option 2 | LF RFID(125KHz) |
| option 3 | HF RFID(13.56MHz ISO 14443A/B) |
| option 4 | HF RFID(13.56MHz ISO 1443A/B ISO 15693) |
| option 5 | NFC Reader (Android OS only) HF RFID(13.56MHz ISO 1443A/B ISO 15693) |
| YES | UHF RFID 860-960MHZ ISO18000-6C (EPC Gen2) / ISO18000-6A,B compatibility in direct mode |
| barcode scanner | option 1 | NEWLAND:EM1300(1D infrared barcode reader--cost-effective ) |
| option 2 | NEWLAND:EM3000(1D&2D barcode reader -- Hardware decode ) |
| option 3 | symbol:SE955(1D laser barcode reader) |
| option 4 | HoneyWell:N4313 (1D laser barcode reader) |
| option 5 | Honeywell:5100(1D&2D barcode reader -- Software decode ) |
| option 6 | Symbol: SE4500(1D&2D barcode reader -- Software decode ) |
| External Interface | USB HOST/RS232(Customized) |
| Protection class | IP65 |
| Drop resistance level | 1.5m |
| Camera Function | Camera | 5MP |
| Video | Support still image and video capture |
| Keypad | Front | 30keys |
| Side | 4keys |
| Interface | Mini-USB connector | USB2.0 connection |
| SIM card slot | Yes |
| PSAM card slot | option |
| TF card slot | Yes |
| power jack | Yes |
| Audio Jack | Yes |
| Battery | Type | rechargeable Li-ion battery 4500mAh |
| Standby Time | 500hours |
| Calls Time | Up to 6hours |
| Charging Time | 4 hours |
| Physical Characteristics | Dimension | 182*82*36mm |
| Weight | >400g with battery (according config) |
